| System |
| Input Signal |
VGA/DVI |
| On Screen Display Control |
MENU, AUTO, LCD On/Off, UP, DOWN |

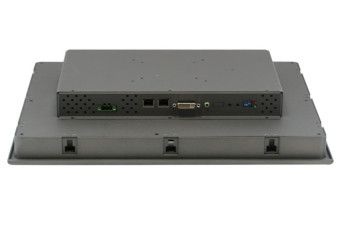

| I/O Connector |
VGA/DVI, RS-232/ mini-USB (For T/S), DIP Switch, USB x 2 (on front panel)
(AGD-312DHTT-A2) |
| OS Support |
Windows® XP, Windows® 7, Linux Fedora |
| Mechanical |
| Construction |
IP-65/ NEMA4 for aluminum die cast front bezel & steel chassis |
| Mounting |
Panel/ VESA 75/100/ Wall |
| Dimension |
13.61" x 10.46" x 4.28" (345.8mm x 265.8mm x 108.8mm) |
| Carton Dimension |
20.67" x 18.31" x 9.1" (525mm x 465mm x 230mm) |
| Gross Weight |
13 lb (5.9 Kg) |
| Net Weight |
9 lb (4.1 Kg) |
| Environmental |
| Operating Temperature |
-4°F ~ 140°F (-20°C~60°C) |
| Storage Temperature - |
4°F ~ 140°F (-20°C~60°C) |
| Storage Humidity |
10%~95% @ 40°C; non-condensing |
| Vibration |
1 g rms/ 5~500Hz/ Random operation |
| Shock |
15 G peak acceleration (11 msec. Duration) |
| EMC |
CE/FCC Class A |
| Power Supply |
| DC Input |
9~30V DC, w/3-pin terminal block
Over-voltage (31V DC)
Under-voltage (8V DC)
Reverse protection
Surge protection (1000V DC) |
| LCD |
| Display type |
12.1" TFT-LCD |
| Max Resolution |
1024 x 768 |
| Max. Colors |
16.7M colors (6/8-bit for R,G,B) |
| Luminance |
500 cd/m2 |
| Viewing Angle |
170°(H), 160°(V) |
| Back Light |
LED |
| Back Light MTBF (hours) |
50,000 |
| Touchscreen |
| Type |
5-wire resistive |
| Light Transmission |
80% |
| Lifetime (Times) |
35 million activations |
