Switchback™ Rugged UltraMobile PC

Hot Swappable Battery: Refresh your power supply without shutting down. The hot swappable battery pack can easily be replaced in the field.
Removable Hard Drive: Stow away sensitive data without removing units from circulation.
Customizable BackPacks: The BackPack module (standard or custom) securely attaches to the back of the SwitchBack™. The BackPack interfaces to the SwitchBack™ through a special, ultra-wide, high-speed connection.
Rugged: MIL-STD-810F for temperature, temperature shock, vibration, shock and humidity.
Integrated Wireless: Bluetooth 2.0, 802.11 b/g, GPS
Sunlight Viewable Display: 5.6-inch 1024x600 screen can be easily viewed in bright sunlight.
System Diagnostics: The SwitchBack™ has a first-of-its-kind, patent pending Status and Control dashboard. This diagnostic application contains an accelerometer and monitors and manages factors such as power consuption, primary and secondary battery levels and temperature.
Extended Life: During the extended life of the SwitchBack™, your applications are likely to change. As your needs evolve, so can the SwitchBack™--translating to tremendous cost savings.

System Specification:

Processor: Intel 1.0 GHz Celeron M
533 MHz FSB
Operating System Options: Genuine Windows XP Pro (standard)
Windows Vista (optional)
Linux (optional)
Display: 5.6" diagonal sunlight viewable LCD
1024x600 WSVGA resolution with passive touch screen
Storage: 40GB rugged 1.8" SATA drive (Up to 120GB)
32GB rugged solid state drive (Up to 64GB)
Memory Options: 512 MB DDR II DRAM
1 GB DDR II DRAM
2 GB DDR II DRAM
User Interface: Touchscreen display with passive stylus
Backlit condensed QWERTY keyboard
Built-in pointing device (pointer, left & right click)
Graphics & Sound: Onboard Intel GMA-900 graphics chipset
Up to 64MB shared memory
AC97 compatible
Ports: 1 USB 2.0
1 power connector
1 ultra-wide BackPack port
With Standard BackPack
1 additional USB 2.0
Audio out (stereo)
Mic input
Type II PCMCIA
VGA out
Serial port
Wireless: Bluetooth 2.0
WiFi b/g with internal 2.4 GHz antenna
Civilian GPS
Power Supply: Lithium polymer battery (3900 mAh)
Battery is hot swappable (2 minutes swap time)
Recharge and run unit from 9 to 28VDC input
2 to 4 hours runtime
Physical Characteristics: Dimensions: 7.5" (w) x 5.5" (h) x 2" (d) [190mm x 140mm x 51mm]
Weight: 3 lbs [1,36kg]
Housing: magnesium alloy w/ elastomeric grips/bumbers
Environment: Base unit IP-67 sealed
Base unit with Standard BackPack IP-65 sealed
Storage Temperature: -40° C to +75° C
With Rotating Hard Drive:
Operating Temperature: 0° C to +50° C
Operational Drop: 36" to concrete
With Solid State Hard Drive:
Operating Temperature: -20° C to +55° C
Operational Drop: 48" to concrete
Regulatory Approvals: FCC Part 15 B
CE Mark
Industry Canada (IC)
Qualified to MIL-STD-810F for:
Temperature
Temperature Shock
Vibration
Shock
Humidity






















Backpack Modules
The SwitchBack's patent-pending BackPack Technology allows the user to incorporate multiple devices into a single BackPack. The BackPack attaches onto the back of the SwitchBack™ UMPC and interfaces to the computer through a special ultra-wide, high-speed connection to the computer. The SwitchBack's design is so flexible almost any electronic peripheral can be designed to interface with it.

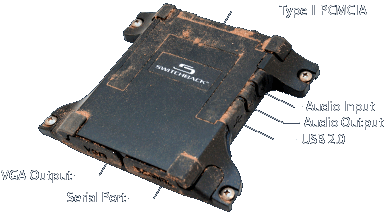

Today, customers can order the SwitchBack™ with the Standard BackPack, which includes VGA output, a Serial Port, type II PCMCIA, Audio In/Out and USB 2.0. In addition, customers can choose to utilize Roper Mobile's BackPack Development Kit which allows them to build their own custom BackPacks.
Devices that can be integrated into a Custom BackPack include, but are not limited to:
Digital Camera, Mag-Stripe Reader, Barcode or RFID Scanner, Graphics Card, Biometric Readers, Compact Flash, Custom Communications Devices, High Definition Audio.

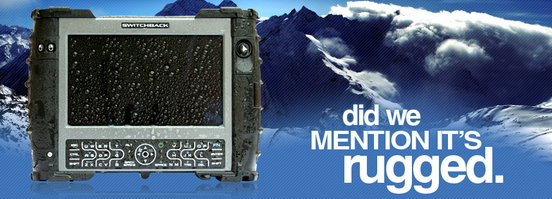

Rugged Features
Rugged
Encased in a magnesium housing and reinforced with rubber isolators and shock-mounted electronics, the SwitchBack™ is designed to meet or exceed MIL-STD-810F specifications for:

Temperature; Temperature Shock; Vibration; Shock; Humidity;

Sealed
IEC 60529 IP-67 rating provides total protection against dust ingress and protection against immersion up to 1 meter of water for 30 minutes.
