| Operating System |
 Windows Mobile® 6.1 Classic
Windows Mobile® 6.1 Professional |
Microprocessor
|
Marvell PXA310 806MHz |
| Memory |
128MB MDDR |
| Storage |
256MB NAND FLASH and 4GB iNAND |
Expansion Slots
|
SDIO / SDHC card slot (up to 16GB SDHC memory card) |
| Display |

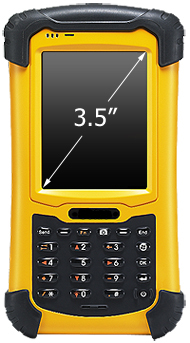

Portrait 3.5" TFT LCD VGA (480 x 640)
Transflective sunlight readable display
Pressure sensitive touchscreen |
| Keypad |
Optional numeric keypad or PDA keypad |
| I/O Interface |
Serial port (9-pin; D-sub) x 1
USB OTG (Client 2.0 and Host 1.2; 5-pin; type Mini AB) x 1
Microphone (Mini-jack) x 1
Speaker x 1
DC in Jack x 1 |
| Communication |
Optional 3.5G WWAN (HSDPA / WCDMA / EDGE / GPRS / GSM)
802.11 b/g
Bluetooth (v2.0 + EDR Class 2)
GPS (with internal antenna) |
| Software |
Optional Getac Camera
Optional Getac Barcode Reader
Optional Getac Electronic Map Solution
Microsoft Internet Explorer Mobile®
Microsoft Office Mobile Applications
Microsoft Office Mobile®
Microsoft Windows Media Player 10 Mobile
Microsoft ActiveSync 4.5 for data sync |
| Rugged Features |
Fully rugged
MIL-STD 810G and IP67 compliance
Tamper-proof plastic case
Vibration & drop resistant
Tumbling resistant(1000 cycles; 0.5m) |
| Power |
AC adapter (50W, 100-240V, 50 / 60Hz)
Li-Ion smart battery (5600mAh) (up to 12 hours of battery life)**
** Battery performance will vary upon software applications, wireless settings, power management settings, LCD brightness, customized modules and environmental conditions. The battery has a limited number of charge cycles and may eventually need to be replaced by a Getac service provider. Battery life and charge cycles vary by use and settings. |
Dimensions / Weight
|
178 x 89 x 30 mm (7" x 3.5" x 1.18")
500 g (17.64 ounce without 3G module) |
| GPS Sensor |
Chipset: SiRF Star III
Receiver Type: L1(C/A)
Channels: 20 channel all-in-view tracking
Update Rate: 1 Hz
Horizontal Accuracy:
i) Autonomous: 5 m
ii) DGPS : 1~3 m
Cold Start Time: 45 sec average
Warm Start Time: 30 sec average
Hot Start Time: 1 sec average
Reacquisition: 0.1 sec average |
Regulatory Approvals
|
CE, FCC, UL, BSMI, NCC, CCC, SRRC |
| Environmental |
Operating temperature: -30°C to 60°C / -22°F to 140°F
Storage temperature: -40°C to 70°C / -40°F to 158°F
Humidity: 5% to 95% RH, non-condensing |
| Accessory |
Microsoft getting started disc
AC adapter and UK/EU/US plug
USB cable
Protective film
Hand strap
Quick start guide
Battery |
| Field Service Feature |
GPS: SiRF Star III
3M pixels auto focus camera
E-compass
Altimeter |
| Alphanumeric data entry |
Soft input panel(SIP) on screen keyboard
Transcriber handwriting recognition
Optional numeric or PDA keypad |
