DuraBook MCT8500

MCT8500 MCT8500 MCT8500
MCT8500 MCT8500 MCT8500

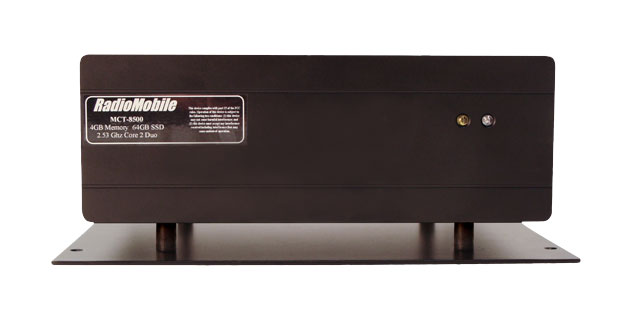

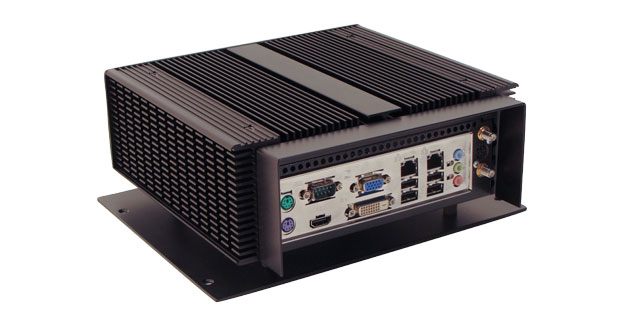

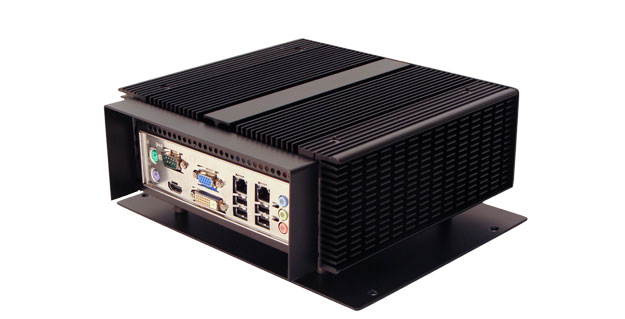

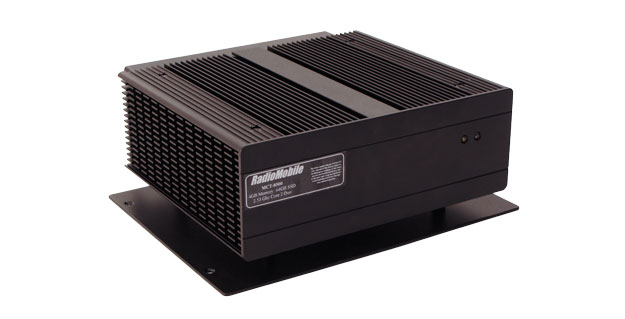

RadioMobile MCT8500
Mobile Computing Terminal


RadioMobile’s mobile data computer system MCT8500 provides vehicles with computing solution configured to operational and ergonomic requirements, scalable to a variety of software systems and applications. It comprises of industry standard and commercial off-the-shelf components thus enabling agencies to capitalize on latest advancements in technology.

   Product Brochure
pdf   Product Brochure 2
I'm interested in this product: (The list will be shown on the right of this page arrow)
Share

     Features

  • Modular design and competitive pricing
  • Configured to customer requirements
  • Universal network interface design
  • Molded and ruggedized for in-vehicle use

    Specification

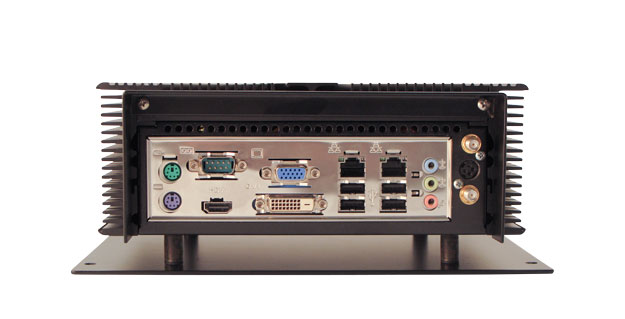

System
  • Intel® Core™ i5-4570T Processor (4M Cache, up to 3.60 GHz) (standard)
  • Memory - 8GB RAM
  • Dual Ethernet - RJ-45, Integrated 10/100/1000 LAN
  • Audio - 6 Channel High Definition, Stereo Panel Header
  • USB-2 US 3.0 Panel Accessible, 2 Additional Internal
  • USB-4 US 2.0 Panel Accessible, 2 Additional Internal
  • Serial D-sub 9pin, Two on Panel
  • VGA (D-sub DB15), DVI and HDMI, Supports up to 3 Standard Displays
  • E-SATA Port Availability Internal
  • 2.5" SATA II Solid State Drive - Removable, Shock Resistant - 1500G
  • Wi-Fi - 802.11b,g,n & Bluetooth Internal
  • 6-24vDC, ATX 125W with Controlled On/Off Sense
  • 35 watt RMS Dissipation, 21 watt (idle)
  • Extruded Metal: 9.6"(W) x 7.3"(D) x 4"(H)
  • Weight is 6.9 lbs.
  • Fanless, Enclosed, Heat Pipe Technology
  • -10°C to +65°C

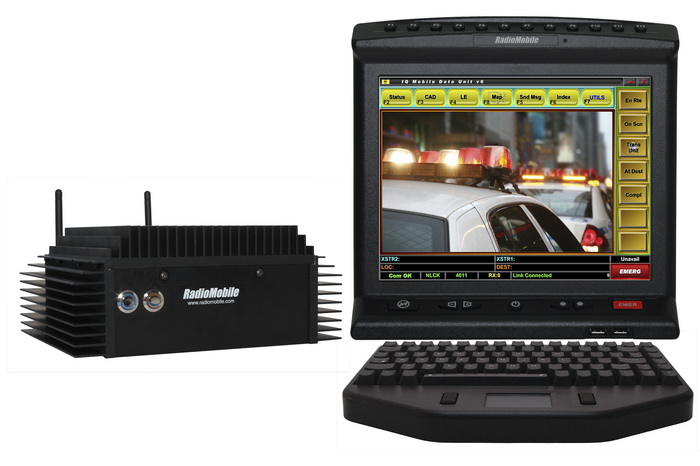

Display
  • 12.1" High Brightness Touch Screen (native 1600 NIT)
  • LED Backlit
  • 12 Programmable Function Buttons
  • 3 Standard USB 2.0 ports
  • Low Current (max brightness 1.8A at 13.7V DC)
  • Emergency and AV Kill Buttons
  • Build in power supply with 6.8V - 28V range
  • Standard DVI/VGA connectors
Keyboard
  • Ruggedized
  • LED backlit
  • Splashproof with touchpad.
  • Low profile with full travel keyswitches
  • 82 key compact design
  • Overall dimensions: 12" x 7.75 " x 1.25"
  • Plastic injection molded top with metal bottom for ease of customizing mounting techniques
  • Interface: PS/2 or USB standard
