    RUGGED HANDHELD BIOMETRIC SOLUTION

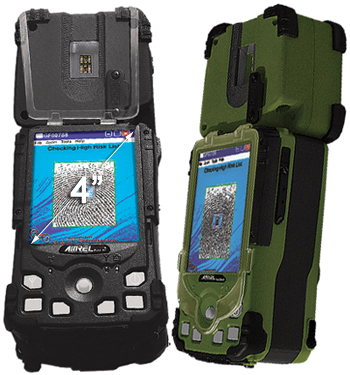

Amrel
  DA5-B


  • Certified to MIL-STD 810F
  • Rain, dust, vibration, and shock resistant design
  • Biometric Capabilities: Iris Scan, Facial Recognition & Fingerprint Scan
  • Meets NIST/ISO Facial Recognition Resolution Standards (EBT Compliant v1.2)
  • Meets FBI/PIV Resolution Standards for Fingerprint Scan
  • Iris Scan Resolution Conforms to ISO/ICE 19794-6
  • Sealed ports & connector covers
  • Wireless capabilities via 802.11, Bluetooth and GPS
  • Magnesium casing (Green or Black)

 Product Brochure

Product Tour

I'm interested in this product: (The list will be shown on the right of this page arrow)
      Specification
CPU Intel Marvel PXA270 624 MHz Processor
Memory 128MB SDRAM
Storage 128MB Flash ROM
Display
4" Sunlight Readable Transflective LCD Touchscreen (480 x 640)
Wireless 802.11 a / b / g / n, Bluetooth, GPS, GPRS
Biometric Tools
1000 dpi Latent Fingerprint Camera
3-Megapixel Face Camera
Auto-Capture Iris Scanner
500 dpi optical Fingerprint Scanner
Built-In Acoustic Sensor,
Built-In Iris Illuminator x 4
Built-In Camera Flash
Power Supply AC Adapter: 100V~240V 50/60Hz input; 36W max output
Vehicle Adapter: Built-In 10~32V
Battery: Primary Li-Ion 3.7V (3900Mah) rechargeable smart battery (user swappable)
Back-Up: Internal 80mAH Li-Polymer battery to sustain data during swap (Win CE only)
Operating System Microsoft Windows Mobile 5.0 & Windows CE (for biometric applications)
Casing Magnesium (Green or Black)
Internal 1 x Microphone
1 x PCMCIA
3 x USB 2.0
1 x Serial (COM3: TX, RX Only)
1 x Speaker
I/O Ports 1 x Serial
1 x DC Input
1 x SD Slot
2 x PCMCIA Slot (Type II)
1 x USB 2.0
1 x Mini USB
1 x Dock Port
1 x Microphone
Dimensions 9.25" W (234.9mm) x 2.75" D (69.8mm) x 3.75" W (92.25mm)
Weight 1 lb. 15.2 Oz. (0.884 kg)
Environmental Ratings MIL-STD 810F
Vibration, shock, high/low temperatures, temperature shock, altitude, humidity, rain, and salt fog test
Safety CE, FCC
Approval EMI/RFI: FCC; Part 15, Class B Safety: UL, CSA, TUV, CE

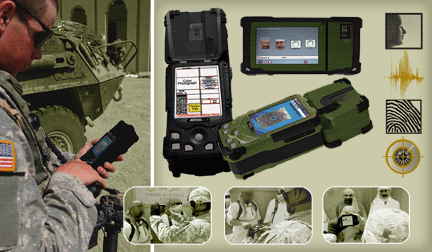

       Biometric Identification

Since September 11, 2001, Homeland Security has significantly increased our nation's security to ensure the safety our country and its people. The effects of this tragic event have rippled throughout other countries, leading to the rise of biometric identification. To help increase the accuracy and speed in identifying terrorists or potential threats, We have developed biometric computer solutions to provide key military personnel with the latest biometric technologies such as fingerprint, facial, iris, and voice recognition.
