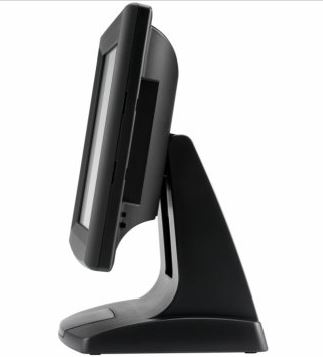

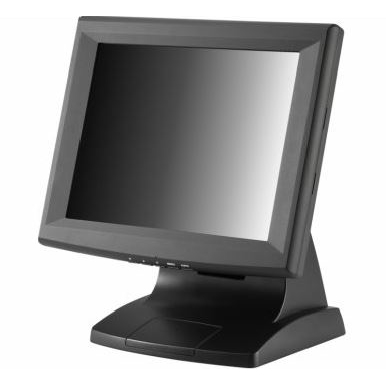

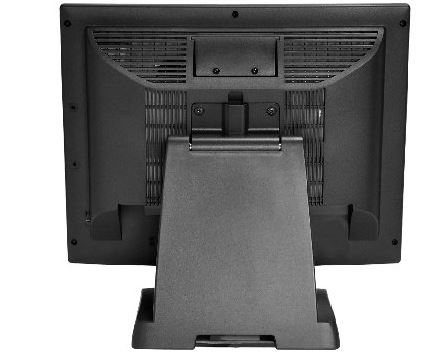

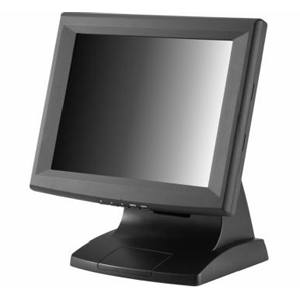

12.1" Touchscreen LED LCD Monitor w/ VGA & DVI Inputs

1200TS 1200TS 1200TS
1200TS 1200TS
   Product Brochure
Need a portable touchscreen display? Don't have enough room for a big bulky 15"? If that's the case, then take a look at this' 12.1" LED LCD Touchscreen display with VGA and DVI Inputs. This display offers you the convenience of a touchscreen at a space-saving size. This monitor supports display resolution up to 800x600 (SVGA). Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. The monitor is perfect for Point Of Sales systems with the included stand and Spill Proof front bezel. The stand can also be removed for use with any VESA mounts making it perfect for home automation purposes or any mounting situation.
  • Spill Proof front bezel
  • 5-Wire Resistive Touch Screen (USB interface)
  • On Screen Display Control
  • For PC, Server, GPS, and various VGA Use
  • VGA Input (15 pin D-SUB) x 1
  • DVI Input x 1
  • 4x3 Aspect Ratio
  • Automatic display adjustment
  • Removable base / stand
  • VESA 75mm mounting holes
  • Supports 12V DC
  • FCC, CE
  • ROHS Compliant
  • 24 Month Warranty
  • 30 days No dead Pixel Guarantee
  • Model #: 1200TS
  • Screen Size:  Diagonal 12.1"
  • Physical Resolution: 1024 (H)  x 768 (V) XGA
  • Supported Resolution:  640 x 480 ~ 1024 x 768
  • Dot Resolution: 2400 x 600 = 1,440,000 (dots)
  • Brightness:  500 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 160° Horizontal, 140° Vertical
  • Response Time: 26ms (Typ.)
  • Power Supply:  DC 12V
  • Power Consumption:  20W
  • Operating Temperature:  32°F ~ 104°F
  • Storage Temperature: 14°F ~ 122°F
  • Dimension w/o base (mm):  315W x 255H x 67.7D
  • Weight (lb):  7.67 w/ base / 5.55 w/o base
  • 24 Month Warranty
  • 30 days No dead Pixel Guarantee
